NukAlert™ Radiation Detector, Meter, Monitor and Alarm

NukAlert™ Technical Brief

NukAlert™ TEN Year Warranty

NukAlert™ NEW BBT Program

NukAlert™ High-Res Photos

NukAlert™ may be eligible for purchase under one or more DHS grant programs.

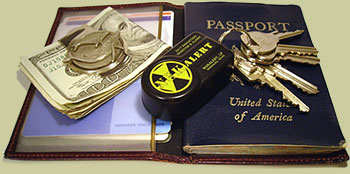

"The current Washington status symbol is not a congressional parking pass but a $160 NukAlert™
radiation detector key fob that looks like a garage door opener but beeps like a Geiger counter
when background radiation levels become dangerous." - SALT LAKE TRIBUNE (3/21/03)

SPECIFICATIONS:

Detects Gamma & X-ray radiation: 20 keV to 2+ MeV
Detection Range: 100 mR/hr to 5,000 R/hr
Sensitivity: 100 mR/hr to 50 R/hr indicated in 10 ranges
Proportional Increasing Chirp Rate: 50 R/hr to 5,000 R/hr
Indication: Repeating groups of rapid countable chirps
Operational indicator: faint "ticking" = operating OK.
Alarm loudness: ~ 61 dBA (speaking volume)
Durability: Functional after 6' drop or submersion to 6'
Battery: Operational Life Expectancy @ room temp:
- Non-alarming (normal operation) - 10 to 15 years
- Alarming continuously at single chirp level - 3 years
- Alarming continuously at highest alarm level - 3 months
- See NEW Battery Replacement Program
Detector: Patented CdS photo resistor coupled to a rare earth phosphor scintillator
Housing: hermetically sealed, radiation transparent, abrasion resistant ABS plastic
Accuracy: Within +/- 1 chirp
Response Time: Dose rate dependent:
- ~3 - 4 min. @100mr/hr
- seconds @ R/hr ranges
Accumulated dose chart on back
EMP immunity: Meets MIL-STD-461D, RS105
Over range survivability: Functional after 5K R/hr. for 2hr.
Temperature Range: -20 C to +50 C

Physical: 1.75"x1.25"x .75"H (LxWxH), Wt <1.0 oz.

$180.00 each (FREE Shipping!)
Need help ordering or for international orders?
Call us at (830) 672-8734

Quickly changing inventory requires calling (830) 672-8734 to order.

"This is the most remarkable advance in civil defense equipment in many, many years. These
are truly great devices." - Dr. Arthur B. Robinson Dir., Oregon Institute of Science and Medicine,
Publisher of 'Nuclear War Survival Skills' book, Co-Author of the Civil Defense book 'Fighting Chance'
(over 500,000 copies sold).
